Product Display

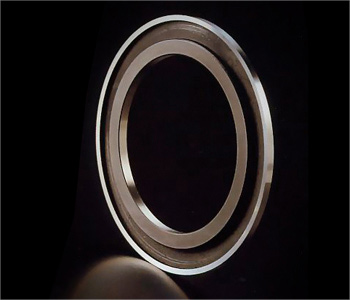

Slitting undercutters
![](/data/upload/image/20230428/1682665799607081.jpg)
Product description:
Upper and lower right-angle edges, with the upper and lower edges generally left with an appropriate gap for use. Thick materials need not be mentioned, but thin materials can also be used. Indispensable for slitting of long sheet materials, the original counter width and cutting width are also involved in many aspects.
Product parameters:
Material | Specifications |
Tungsten Steel | φ80 X φ55 X 10 |
φ100 X φ65 X 2 | |
φ100 X φ65 X 3 | |
φ110 X φ75 X 3 | |
φ110 X φ90 X 3 | |
φ130 X φ70 X 3 | |
φ130 X φ70 X 5 | |
φ130 X φ95 X 4 | |
φ130 X φ95 X 5 | |
High speed steel | φ80 X φ55 X 10-1.5 |
φ80 X φ55 X 10-2 | |
φ92 X φ65 X 10-2 |
Use to | Used when slitting metal foil and paper tape. |
---|---|
Material | Tungsten Steel / High Speed Steel |
